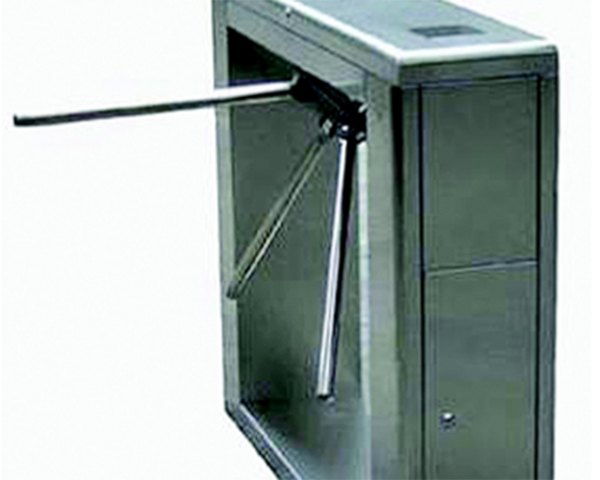

Turn gate

With advanced drive control technology, the design can be changed to a wide range to meet the various requirements of intelligent access control systems in different styles of modern buildings. The turn-off is particularly suitable for the safe and reliable protection of access to external facilities, sports fields, public places and parking facilities. Designed for the automatic access of personnel, the highly sophisticated system has a wide range of usability and can be used in conjunction with access control card readers and ticket gate systems to prevent unauthorized access. Divided into single channel and dual channel.

Features:

·Structure: frame structure / fine profile stainless steel tube

· Passing direction: one-way, two-way (optional); with a variety of working modes to choose from, you can read the card in both directions, or read the card while the other direction is prohibited, while reading the card, the other direction is free Pass

·Automatic reset function: After the brake is opened, the system will be automatically locked within the specified time without passing, and the transit time can be adjusted;

·Unique two-way anti-reverse function

·Power-off free rotation function to meet fire protection requirements

·Lighting Tip: Direction of Direction

· Control panel with counting function, LED digital display function (optional)

·The control board has a memory function to meet group access

·Using optical hole working principle, there is no delay requirement for input control signal ·Working environment: indoor, outdoor (canopy)

·Temperature: -10 ° C ~ 50 ° C Relative humidity: ≤ 90%, no condensation

·Induction card reader size: with standard mounting bracket, or tailor-made

· Opening time: 0.2 seconds;

· Passing speed: 10-30 people / minute;

·Communication interface: standard RS485 interface, distance ≤ 1200 meters;

· Input interface: dry contact signal or +12 level signal or DC12V pulse signal with pulse width ≥100ms, drive current ≥10mA.

Standard color: stainless steel.

Security: Standard.

Optional: One-way / two-way.
