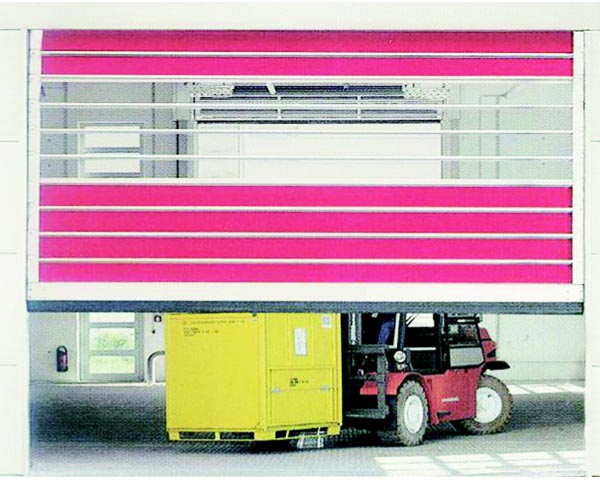

High speed door

The fast doors produced by Animei have been widely used in logistics, automobiles, exhibition halls, food and beverage, airports, electronics, fire protection, shopping centers, hangars, docks, industry, agriculture and other fields.

Features:

The high speed opening and closing of the door body can reduce the heat energy loss in the plant and effectively block the air circulation.

Use environment: internal department / external department;

Maximum size: 4000*4000 (width*height);

Speed: On: 3m/s, Off: 1.5m/s;

Control: frequency control system;

Power outage: balance system, automatically open;

Door frame: aluminum alloy;

Door curtain: The high-strength aluminum alloy is filled with polyester fiber base cloth or transparent organic glass, the thickness is 30mm, and the temperature is -30°C-70°C;

Sealing performance: EPDM rubber at the bottom, sealed nylon brush in the track;

Dynamic performance: AC or isoelectric motor, 220/380V, 50HZ, IP55, power 1.1-1.5KW;

Wind resistance coefficient: wind speed is 6 grades, 10 ~ 13m / s, wind pressure is 11 / m2;

Allowable frequency: 10 times / minute, frequency conversion is on (800 ~ 1000 times / day).

Standard color: (silver white) RAL9003;

safety:

·Safe light curtain

·Automatic derailment device

·Automatic track system

·Optional equipment:

·Polyester fiber

·Reel cover

·Double-sided safety photoelectric protection

·Wind resistance coefficient: greater than 6 wind speed

·Display

Counter

·Opening method: geomagnetic, radar, remote control, rope switch, photoelectric, electronic label, access control, interlock linkage, etc.

·Anti-collision pile

High speed door (SGL1000 type)
